Product Size
1) Width: 20 meters
2) Length: 30 meters
3) Eave height: This case is 2.8 meters, we have other standard size like 3m, 4m, 5m, 6m.
4) Ridge height: standard 5.8 meters
5) Bay distance: 5m, total 6 bays.
Frame part
1) The main parts are made of aluminum alloy 113x259x5mm, and the spare part are made of steel.
2) All aluminum components are technically anodized and all steel parts are well hot-dip galvanized.
Cover Part
1) The whole fabric made of double coated PVC fabric.
2) The fabrics have waterproof, UV resistant, flame retardant to DIN4102, M2 and Grade B1, tear resistant, self-cleaning ability, etc.
3) In this case, the roof is 850g/sqm white PVC, the side wall and door is made of 650g/sqm white PVC.
Fixing way
Expansion screw in this case
Other optional accessories
1) Shape: Polygonal, High-peak, Arcum, Curve
2) Walls: Glass wall, sandwich walls, steel tile, ABS walls.
3) Doors: glass door, sliding door, roliing shutter door
4) Flooring system
5) Lining and curtains
6) Other suppliers, such as door canopy, chairs, tables, lighting, etc
7) Fixing ways: Ground nails, Weight plate

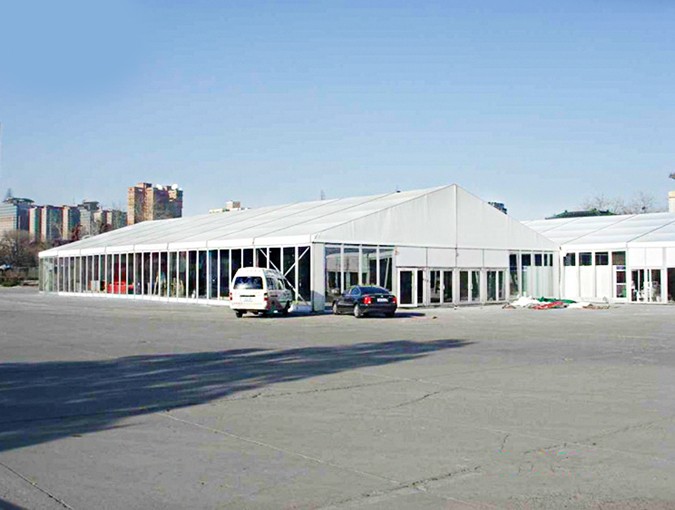

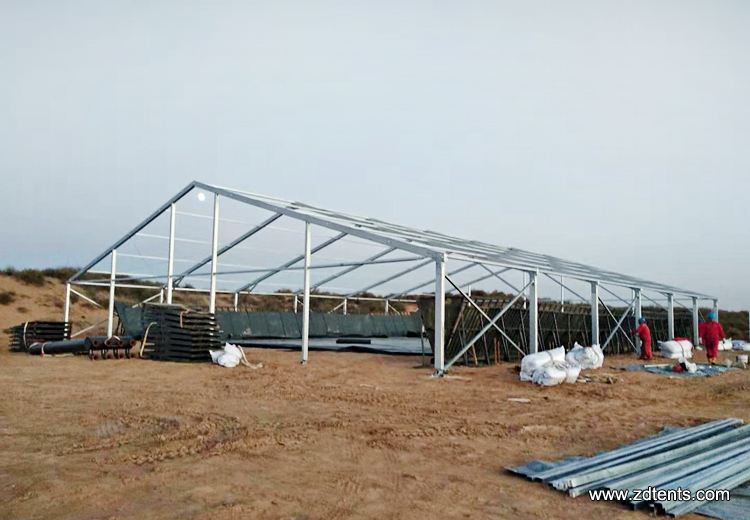

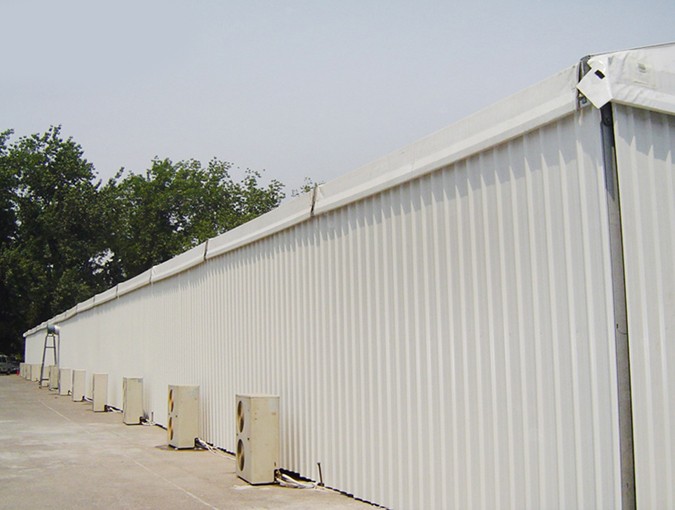

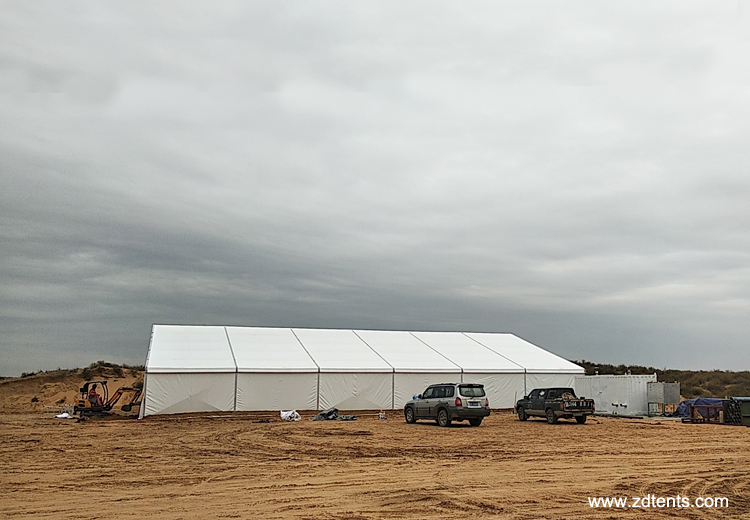

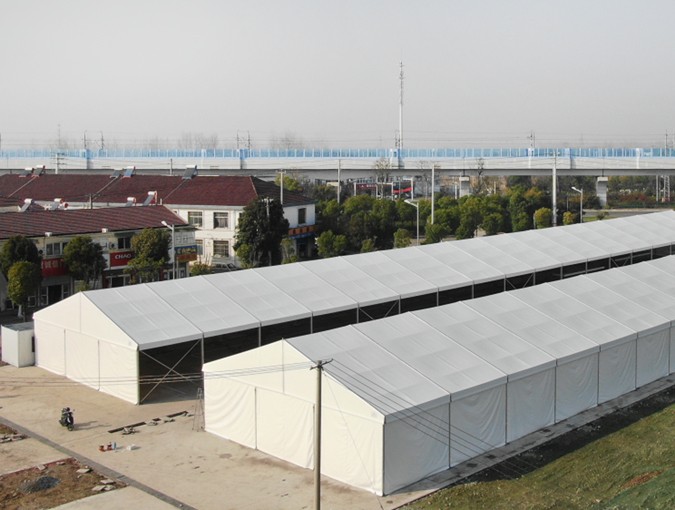

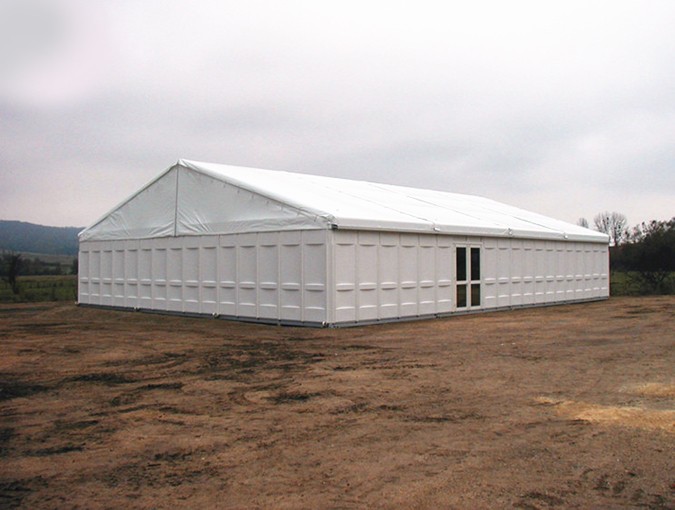

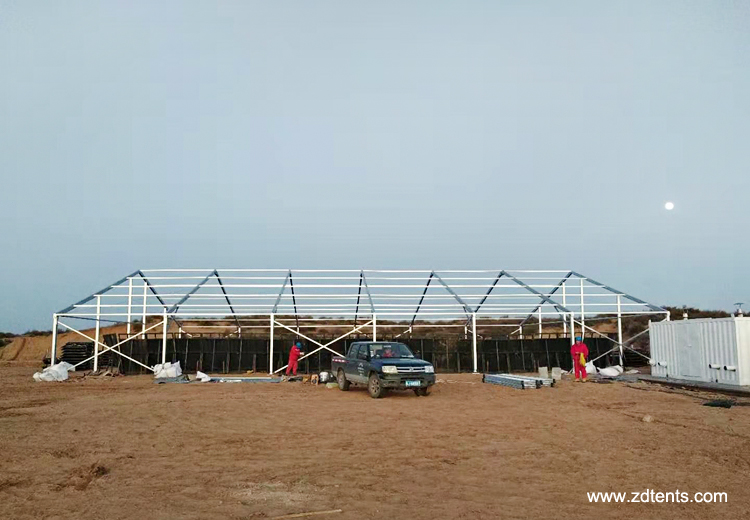

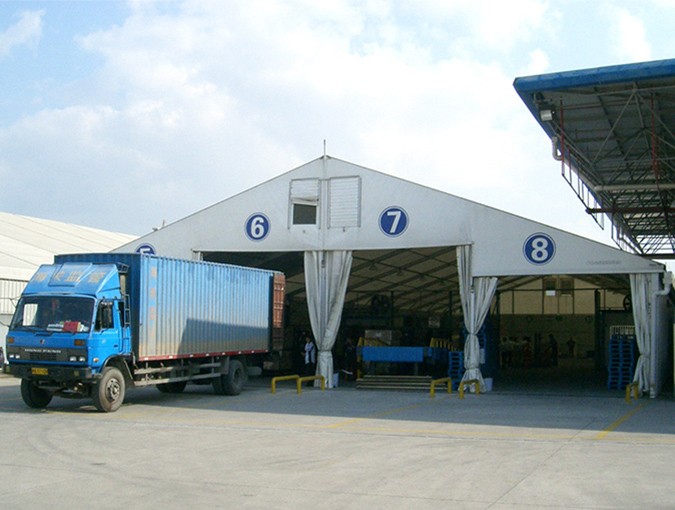

Product pictures
