Aluminum frame industrial warehouse tent
warehouse tent

Aluminum frame industrial warehouse tent

Z&D heavy-duty warehouse tents are widely used in industrial production and storage. It meets the needs of customers for rapid construction and disassembly, long-term fixing, and cost saving. With a safe, strong and stable warehouse tent, the aluminum material thickness is from 3 mm to 6 mm, and its service life is up to 25 years. It can withstand a maximum wind speed of 110km/h and a snow load of 70kg/sqm. Z&D warehouse tents are becoming more and more popular among industrial groups.
Product Detail
Aluminum frame industrial warehouse tent

Product Size

1) Width: from 3 meters to 50 meters

2) Length: Unlimited

3) Eave height: standard from 2.5 meters, 3 meters, 4 meters, 5 meters to 6 meters upon span width(or special height per requested)

4) Ridge height: It varies with the height of the eave

5) Bay distance: 5 meters each bay


Size specification

Item

Span

(Width m)

Bayspacing(m)

Eave height(m)

Ridge height

(m)

Main frameprofile(mm)

Z&D-6

6

3

2.5

3.5

48x84x3

Z&D-8

8

3

2.5

3.9

48x84x3

Z&D-10

10

3

2.5

4.3

48x84x3/48x100x3

Z&D-12

12

5

3

5.1

68x122x3

Z&D-15

15

5

3

5.4

108x150x3

Z&D-18

18

5

4

6.9

112x203x4

Z&D-20

20

5

4

7.2

112x203x4

Z&D-25

25

5

4

8.0

113x259x5

Z&D-30

30

5

4

8.8

120x300x5

Z&D-40

40

5

4

10.4

120x300x5

Z&D-50

50

5

5

13

128x350x5


Frame part

1) The main parts are made of aluminum alloy, and the spare part are made of steel.

2) All aluminum components are technically anodized and all steel parts are well hot-dip galvanized.


Cover Part

1) The whole fabric made of double coated PVC fabric.

2) The fabrics have waterproof, UV resistant, flame retardant to DIN4102, M2 and Grade B1, tear resistant, self-cleaning ability, etc.

3) In this case, the roof is 850g/sqm white PVC, the side wall and door is 650g/sqm white pvc fabric.


Fixing way

Expansion screw in this case


Other optional accessories

1) Shape: High-peak, Polygonal, Arcum, Curve, Pagoda

2) Walls: PVC walls, Sandwich walls, ABS walls

3) Doors: sliding door, Glass door, PVC door, rolling shutter door

4) Other suppliers, such as door canopy, forklift, etc

5) Fixing ways: Ground nails, Weight plate

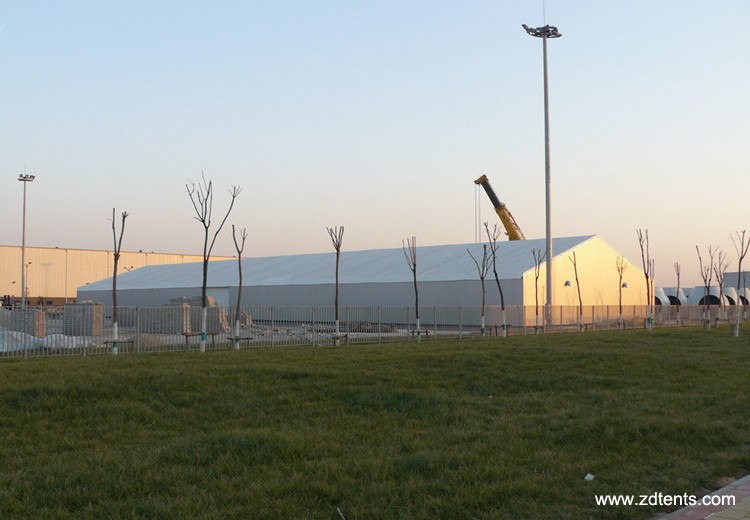

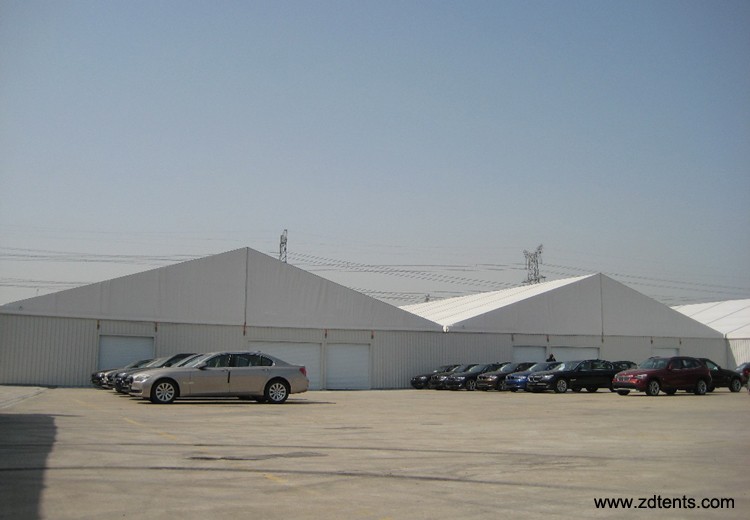

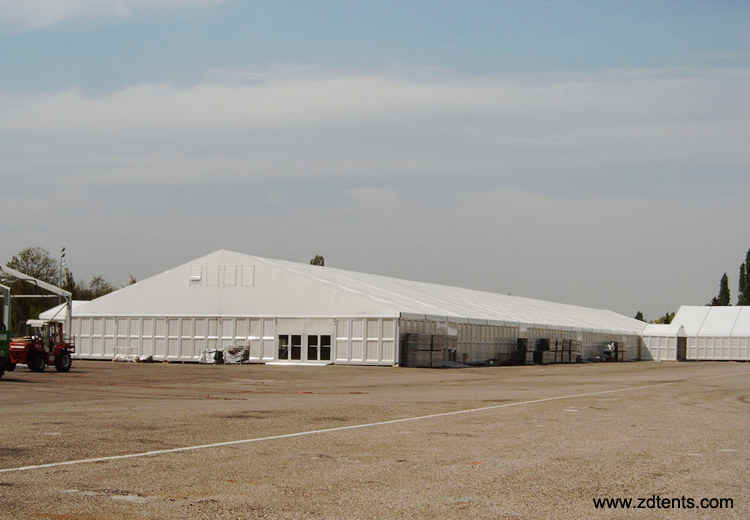

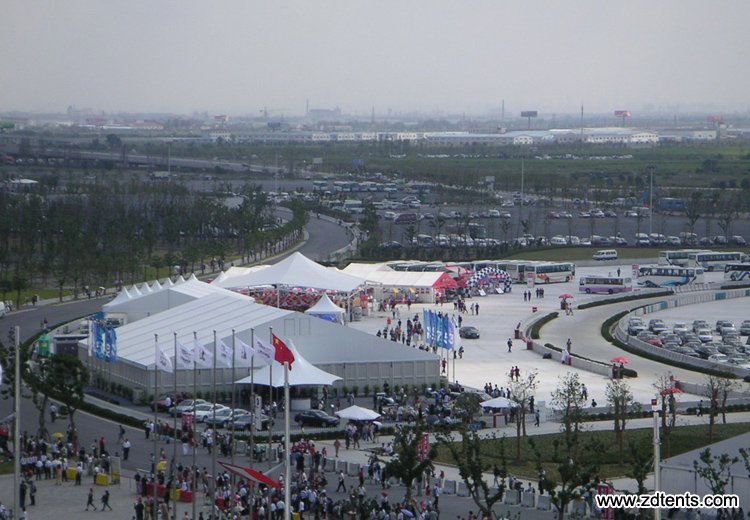

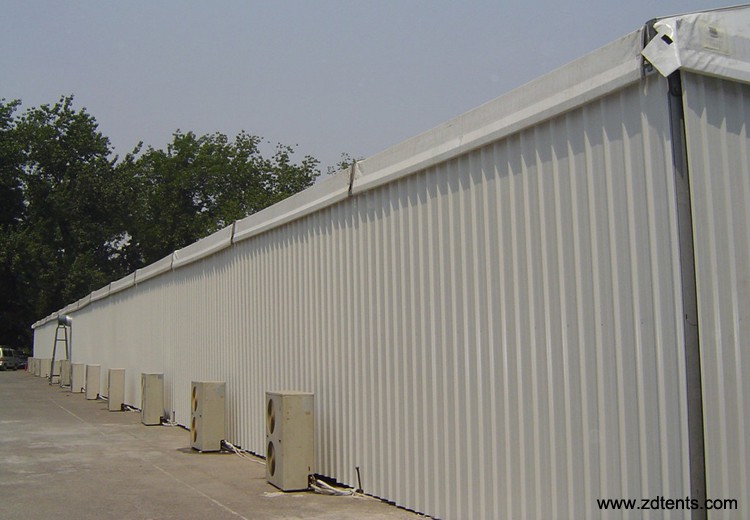

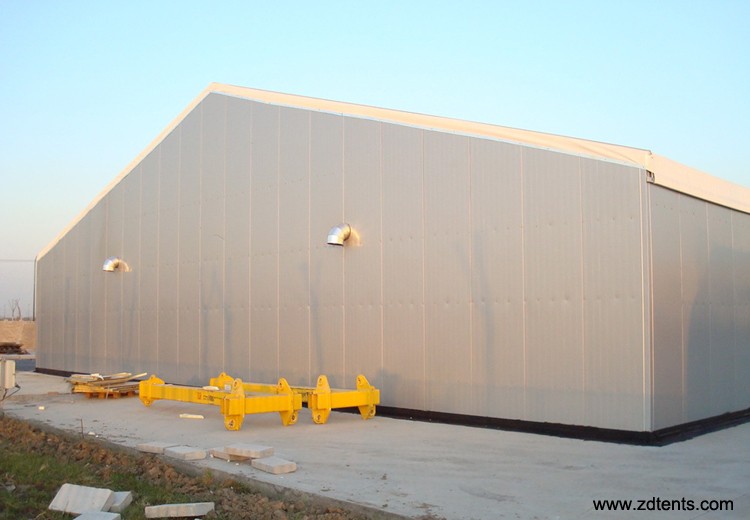

Product pictures
