Your location: Home   Products   Exhibition tent  Auto show tent clear span exhibition tent
Auto show tent clear span exhibition tent
exhibition tent

Auto show tent clear span exhibition tent

Z&D outdoor exhibition tent is made of aluminum frame and waterproof PVC fabric. The tent styles are available for selection. A shaped tent, transparent tent, pagoda top tent and polygonal tent are more commonly used. We usually use tents for outdoor exhibitions, trade shows, car shows or festival celebrations. In addition to durable PVC fabric walls, we also offer tempered glass walls, solid sandwich walls or ABS walls for your choice. This event tent is weather resistant and can be used in four seasons. Whenever you need a temporary or long-term event space, it can be quickly built to provide the space for you.
Product Detail
Auto show tent clear span exhibition tent

Product Size

1) Width: from 3 meters to 50 meters

2) Length: Unlimited

3) Eave height: standard from 2.5 meters, 3 meters, 4 meters, 5 meters to 6 meters upon span width(or special height per requested)

4) Ridge height: It varies with the height of the eave

5) Bay distance: 5 meters each bay


Size specification

Item

Span

(Width m)

Bayspacing(m)

Eave height(m)

Ridge height

(m)

Main frameprofile(mm)

Z&D-6

6

3

2.5

3.5

48x84x3

Z&D-8

8

3

2.5

3.9

48x84x3

Z&D-10

10

3

2.5

4.3

48x84x3/48x100x3

Z&D-12

12

5

3

5.1

68x122x3

Z&D-15

15

5

3

5.4

108x150x3

Z&D-18

18

5

4

6.9

112x203x4

Z&D-20

20

5

4

7.2

112x203x4

Z&D-25

25

5

4

8.0

113x259x5

Z&D-30

30

5

4

8.8

120x300x5

Z&D-40

40

5

4

10.4

120x300x5

Z&D-50

50

5

5

13

128x350x5


Frame part

1) The main parts are made of aluminum alloy, and the spare part are made of steel.

2) All aluminum components are technically anodized and all steel parts are well hot-dip galvanized.


Cover Part

1) The whole fabric made of double coated PVC fabric.

2) The fabrics have waterproof, UV resistant, flame retardant to DIN4102, M2 and Grade B1, tear resistant, self-cleaning ability, etc.

3) In this case, the roof is 850g/sqm white PVC, the side wall and door is 650g/sqm white pvc fabric.


Fixing way

Expansion screw in this case


Other optional accessories

1) Shape: High-peak, Polygonal, Arcum, Curve, Pagoda

2) Walls: PVC walls, Sandwich walls, ABS walls, Glass walls

3) Doors: sliding door, Glass door, PVC door, rolling shutter door

4) Other suppliers, such as door canopy, forklift, linings, chairs, etc

5) Fixing ways: Ground nails, Weight plate

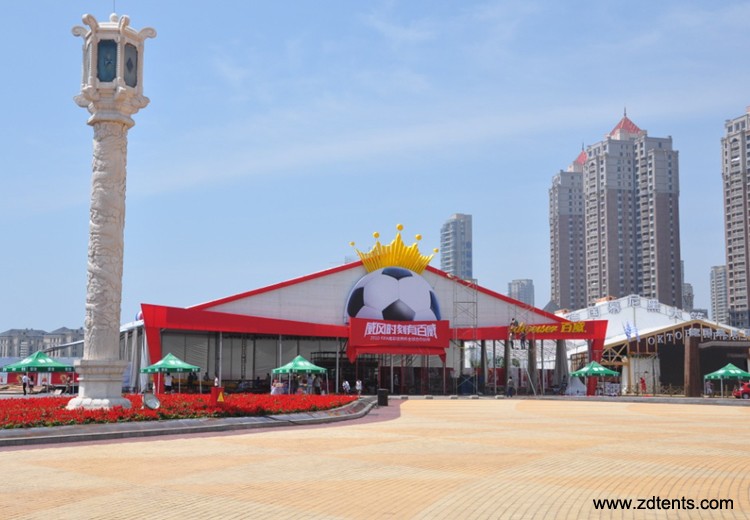

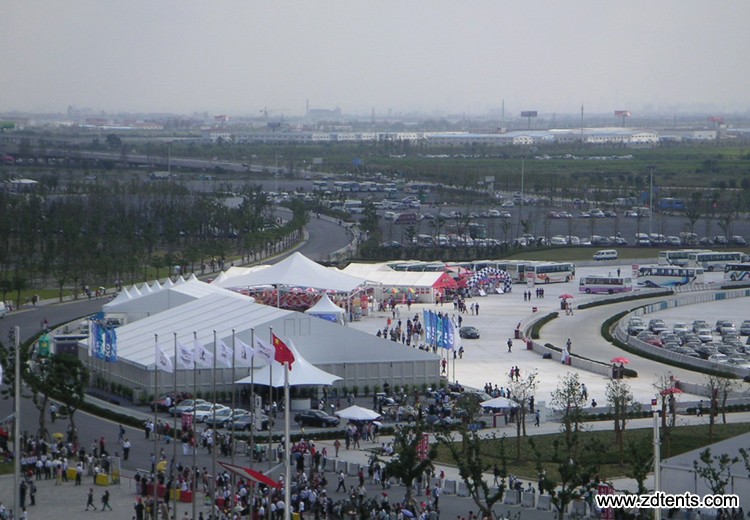

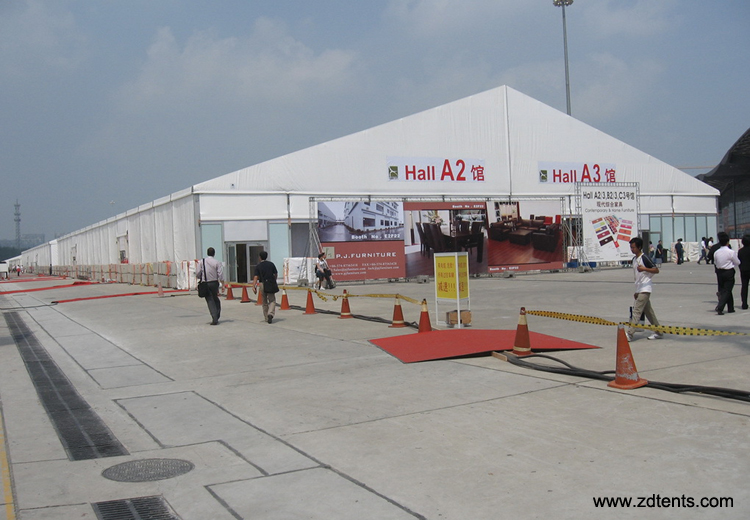

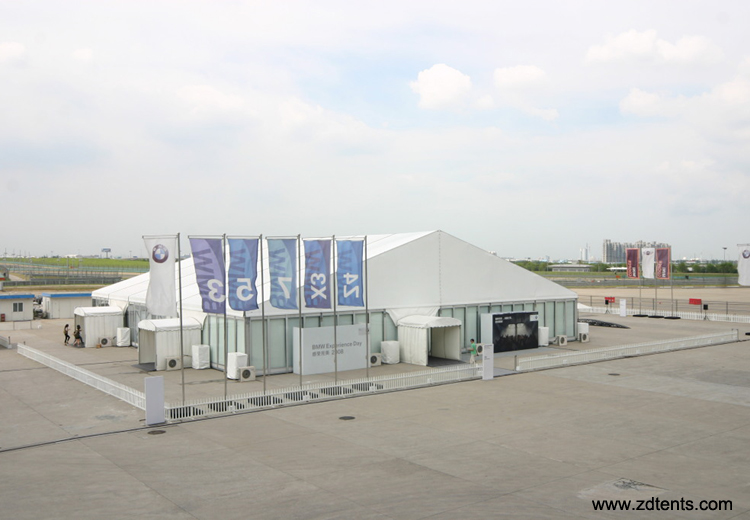

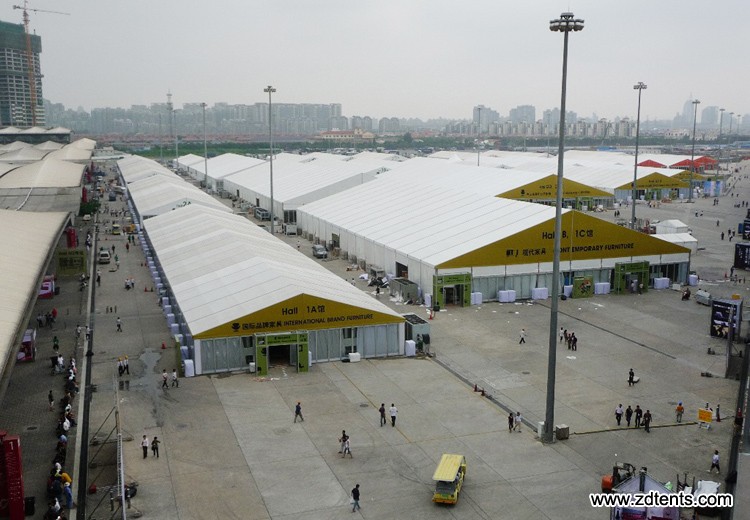

Product pictures
