Clear span big sport stadium cover tent
sport tent

Clear span big sport stadium cover tent

Z&D sports tents are an ideal place for people to exercise or hold competitions. The unique design of the aluminum structure of the tent makes it sturdy and can be used for a long time. It has waterproof and fireproof properties and can be used indoors and outdoors. There are many types of sports tents for your reference: tennis tent, basketball tent, football tent, badminton tent, taekwondo stadium tent, boxing ring tent, swimming pool tent, ski tent, skateboard tent. We usually recommend the use of large polygonal tents in large sports competitions, because the ridge height of the tent can exceed 15 meters, which can meet all the requirements of any sports.
Product Detail
Clear span big sport stadium cover tent

Product Size

1) Width: from 3 meters to 50 meters

2) Length: Unlimited

3) Eave height: standard from 2.5 meters, 3 meters, 4 meters, 5 meters to 6 meters upon span width(or special height per requested)

4) Ridge height: It varies with the height of the eave

5) Bay distance: 5 meters each bay


Size specification

Item

Span

(Width m)

Bayspacing(m)

Eave height(m)

Ridge height

(m)

Main frameprofile(mm)

Z&D-6

6

3

2.5

3.5

48x84x3

Z&D-8

8

3

2.5

3.9

48x84x3

Z&D-10

10

3

2.5

4.3

48x84x3/48x100x3

Z&D-12

12

5

3

5.1

68x122x3

Z&D-15

15

5

3

5.4

108x150x3

Z&D-18

18

5

4

6.9

112x203x4

Z&D-20

20

5

4

7.2

112x203x4

Z&D-25

25

5

4

8.0

113x259x5

Z&D-30

30

5

4

8.8

120x300x5

Z&D-40

40

5

4

10.4

120x300x5

Z&D-50

50

5

5

13

128x350x5


Frame part

1) The main parts are made of aluminum alloy, and the spare part are made of steel.

2) All aluminum components are technically anodized and all steel parts are well hot-dip galvanized.


Cover Part

1) The whole fabric made of double coated PVC fabric.

2) The fabrics have waterproof, UV resistant, flame retardant to DIN4102, M2 and Grade B1, tear resistant, self-cleaning ability, etc.

3) In this case, the roof is 850g/sqm white PVC, the side wall and door is 650g/sqm white pvc fabric.


Fixing way

Expansion screw in this case


Other optional accessories

1) Shape: High-peak, Polygonal, Arcum, Curve, Pagoda

2) Walls: PVC clear walls, Glass walls, Sandwich walls

3) Doors: sliding door, Glass door, PVC clear door

4) Flooring system

5) Lining and curtains

6) Other suppliers, such as door canopy, chairs, tables, lighting, etc

7) Fixing ways: Ground nails, Weight plate

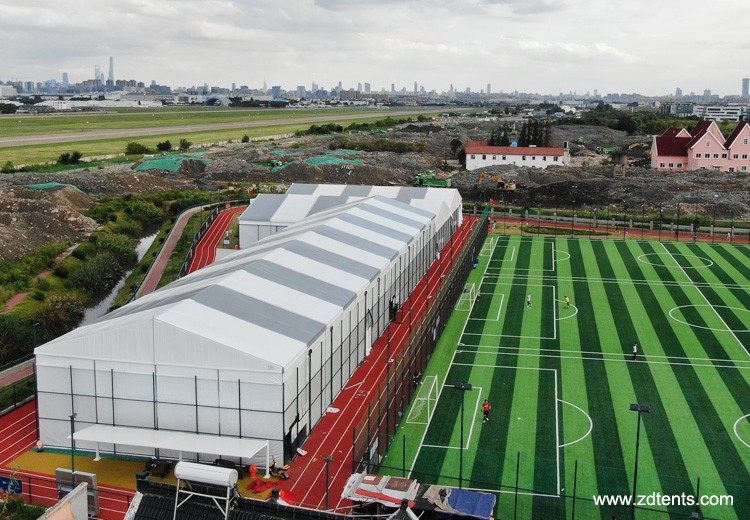

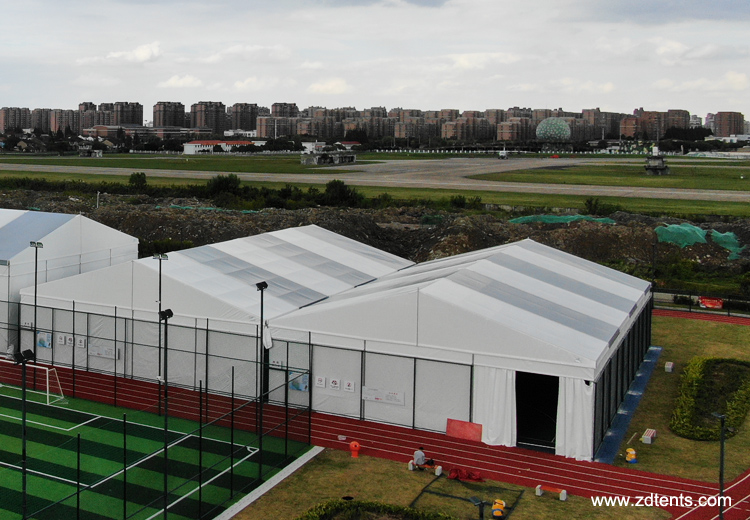

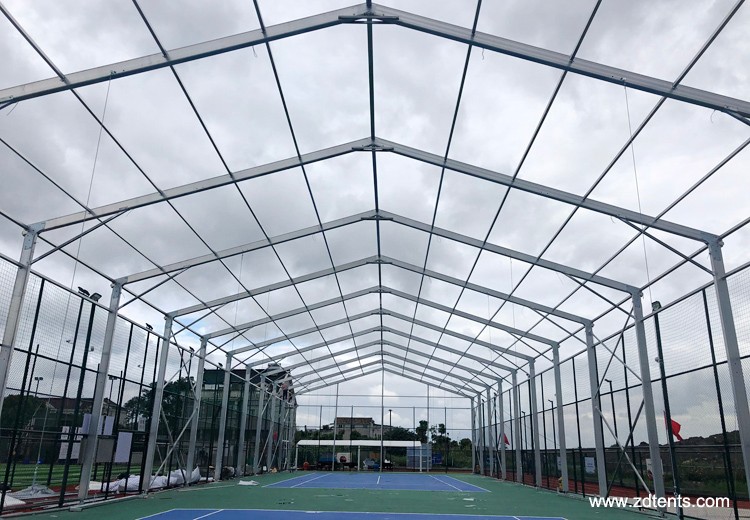

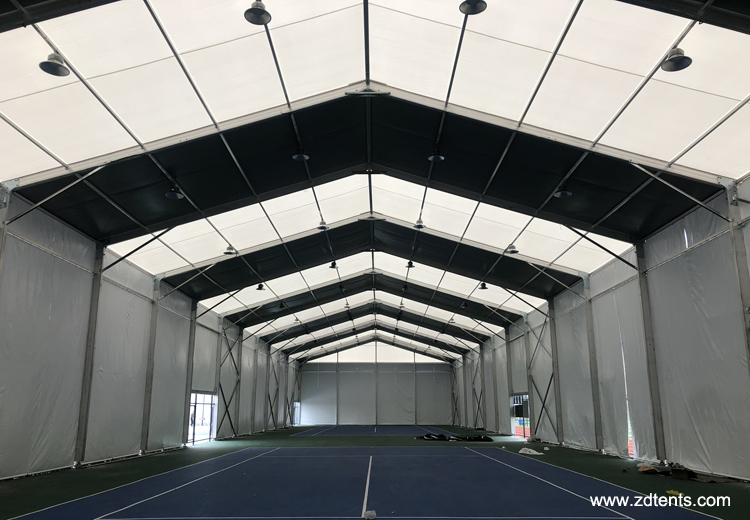

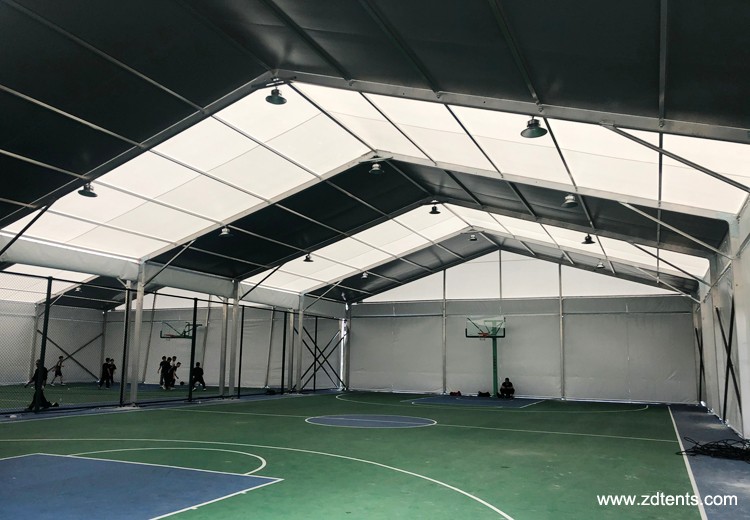

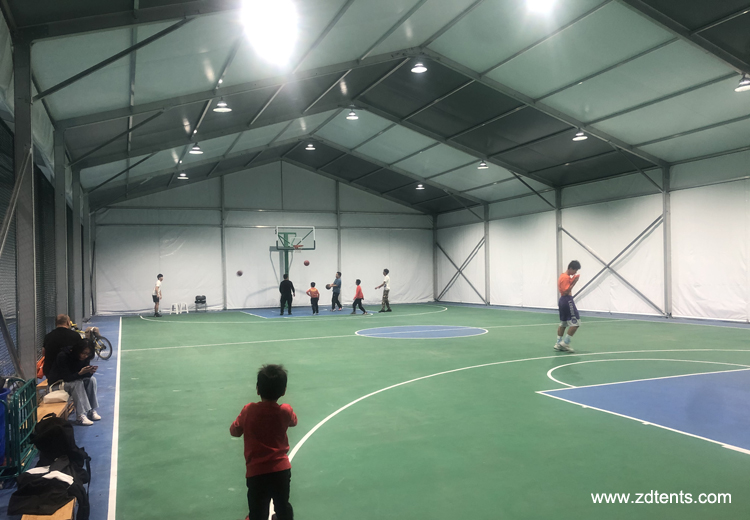

Product pictures
