Product Size
1) Width: from 3 meters to 50 meters
2) Length: Unlimited
3) Eave height: standard from 2.5 meters, 3 meters, 4 meters, 5 meters to 6 meters upon span width(or special height per requested)
4) Ridge height: It varies with the height of the eave
5) Bay distance: 5 meters each bay
Size specification
Item | Span (Width m) | Bayspacing(m) | Eave height(m) | Ridge height (m) | Main frameprofile(mm) |
Z&D-6 | 6 | 3 | 2.5 | 3.5 | 48x84x3 |
Z&D-8 | 8 | 3 | 2.5 | 3.9 | 48x84x3 |
Z&D-10 | 10 | 3 | 2.5 | 4.3 | 48x84x3/48x100x3 |
Z&D-12 | 12 | 5 | 3 | 5.1 | 68x122x3 |
Z&D-15 | 15 | 5 | 3 | 5.4 | 108x150x3 |
Z&D-18 | 18 | 5 | 4 | 6.9 | 112x203x4 |
Z&D-20 | 20 | 5 | 4 | 7.2 | 112x203x4 |
Z&D-25 | 25 | 5 | 4 | 8.0 | 113x259x5 |
Z&D-30 | 30 | 5 | 4 | 8.8 | 120x300x5 |
Z&D-40 | 40 | 5 | 4 | 10.4 | 120x300x5 |
Z&D-50 | 50 | 5 | 5 | 13 | 128x350x5 |
Frame part
1) The main parts are made of aluminum alloy, and the spare part are made of steel.
2) All aluminum components are technically anodized and all steel parts are well hot-dip galvanized.
Cover Part
1) The whole fabric made of double coated PVC fabric.
2) The fabrics have waterproof, UV resistant, flame retardant to DIN4102, M2 and Grade B1, tear resistant, self-cleaning ability, etc.
3) In this case, the roof is 850g/sqm white PVC, the side wall and door is made of PVC windows walls.
Fixing way
Expansion screw in this case
Other optional accessories
1) Shape: High-peak, Polygonal, Arcum, Curve
2) Walls: ABS walls, Glass walls, Sandwich walls
3) Doors: Rolling shutter door, sliding door, PVC door
4) Flooring system
5) Fixing ways: Ground nails, Weight plate

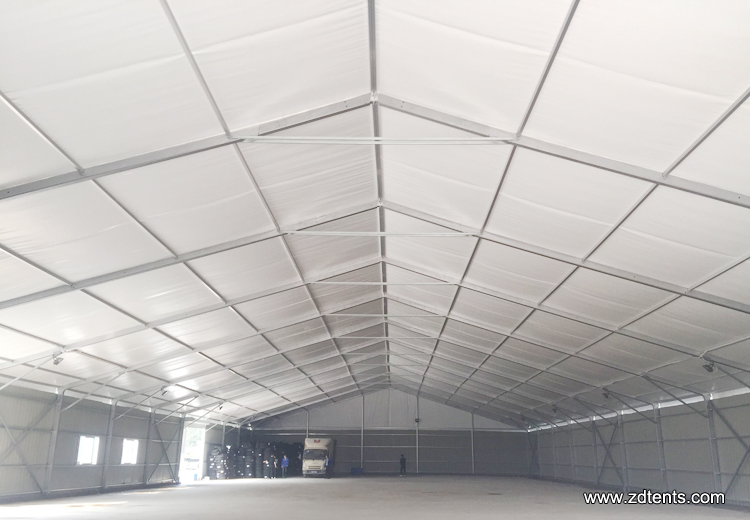

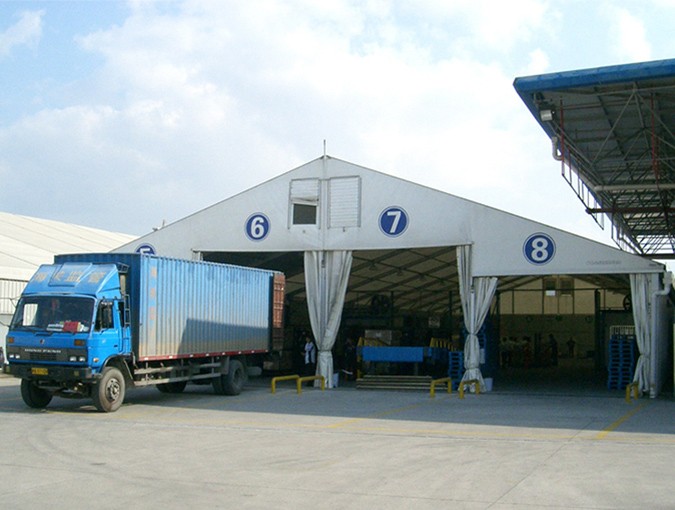

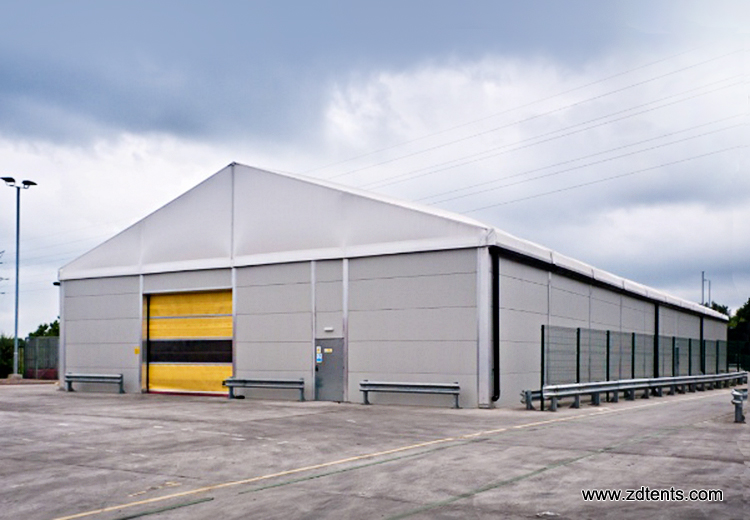

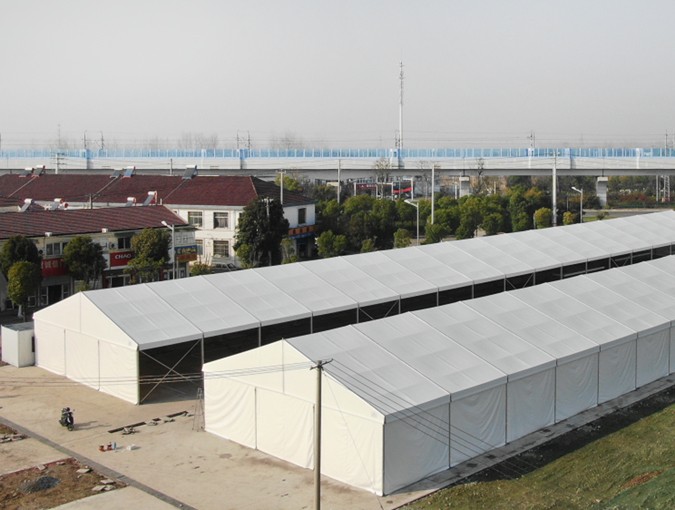

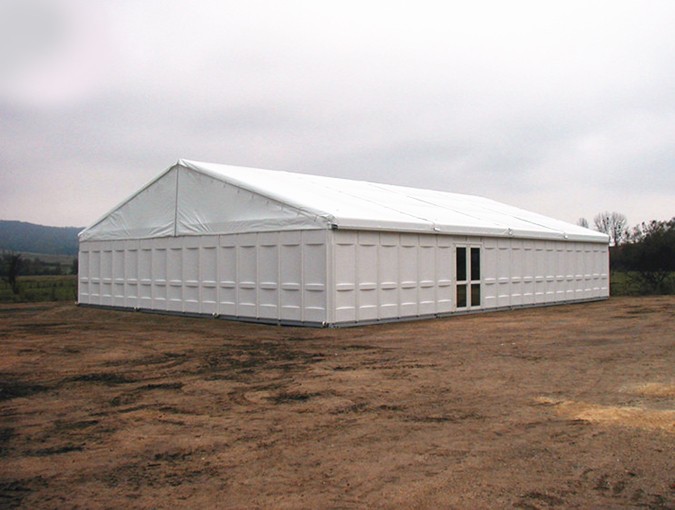

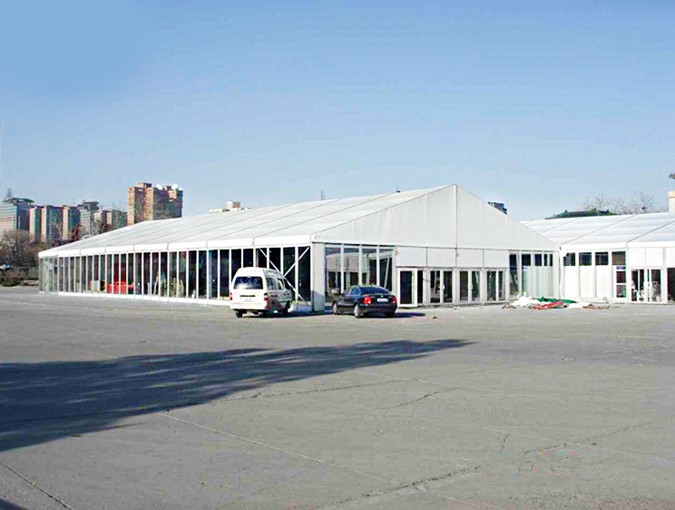

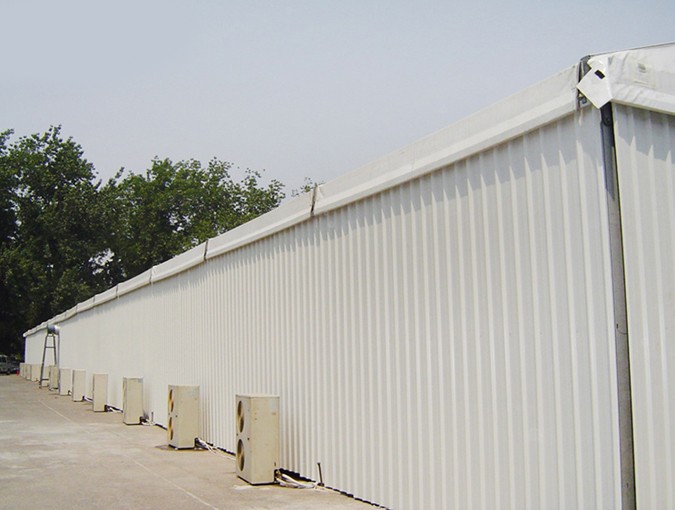

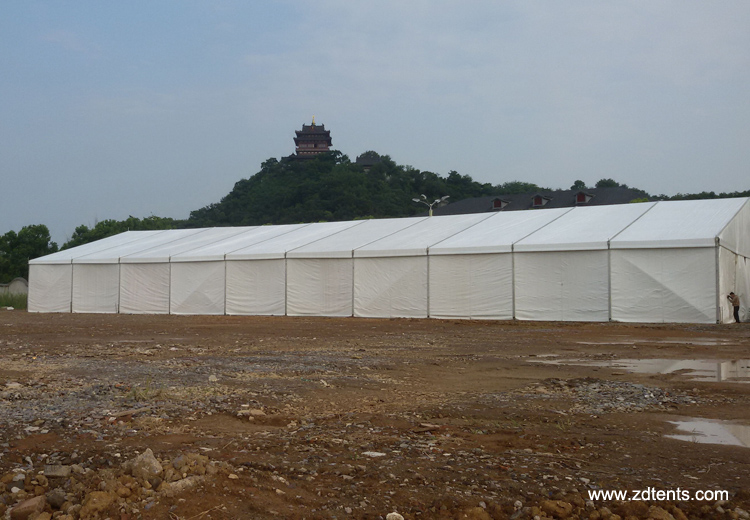

Product pictures
