Product Size
1) Width: 30 meters
2) Length: 70 meters
3) Eave height: standard 4 meters
4) Ridge height: standard 8 meters
5) Bay distance: 5m, total 14 bays.
Frame part
1) The main parts are made of aluminum alloy 112x203x4mm, and the spare part are made of steel.
2) All aluminum components are technically anodized and all steel parts are well hot-dip galvanized.
Cover Part
1) The whole fabric made of double coated PVC fabric.
2) The fabrics have waterproof, UV resistant, flame retardant to DIN4102, M2 and Grade B1, tear resistant, self-cleaning ability, etc.
3) In this case, the roof is 850g/sqm white PVC, the side wall and door is tempered glass.
Fixing way
Expansion screw in this case
Other optional accessories
1) Shape: High-peak, Polygonal, Arcum, Curve, Pagoda
2) Other walls: white PVC walls, clear PVC walls, Sandwich walls, ABS walls
3) Doors: glass door, 650g/sqm pvc doors
4) Flooring system
5) Lining and curtains
6) Other suppliers, such as door canopy, chairs, tables, lighting, etc
7) Fixing ways: Ground nails, Weight plate

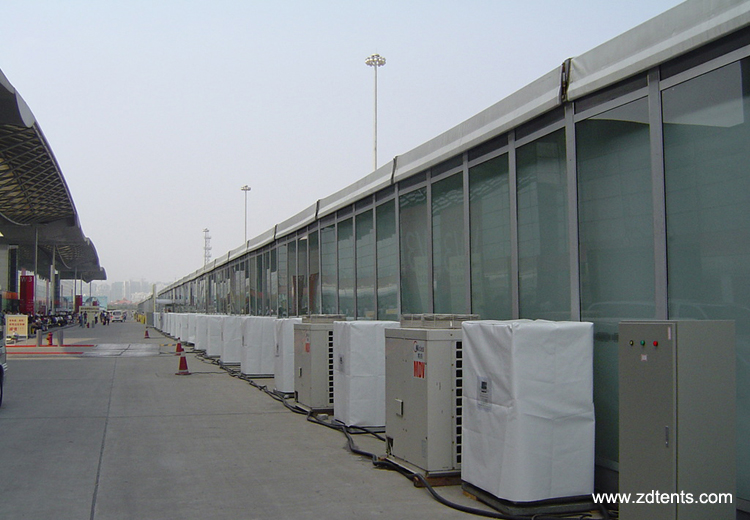

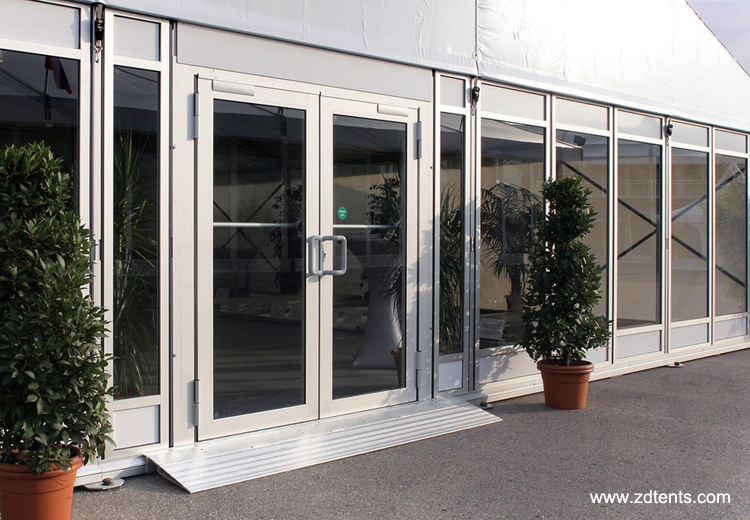

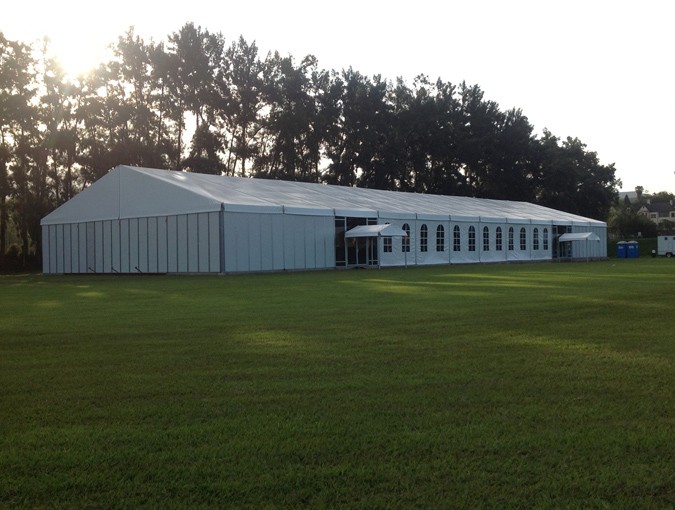

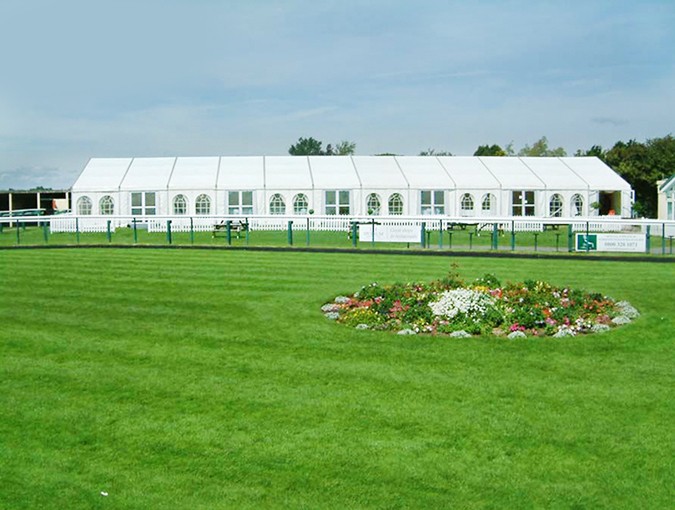

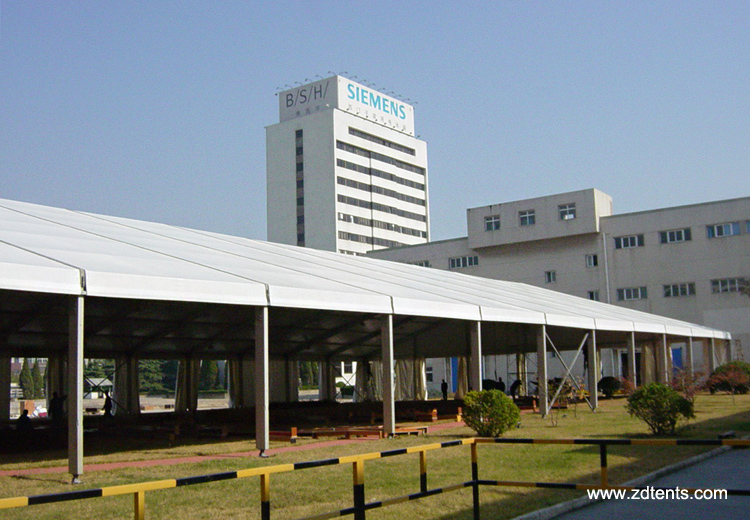

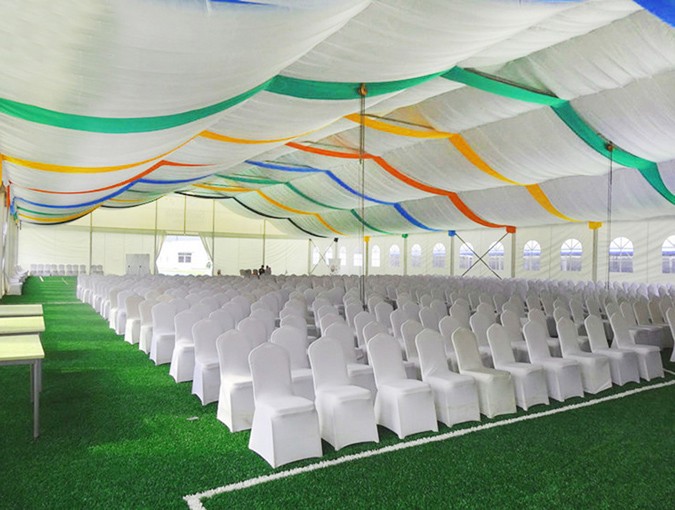

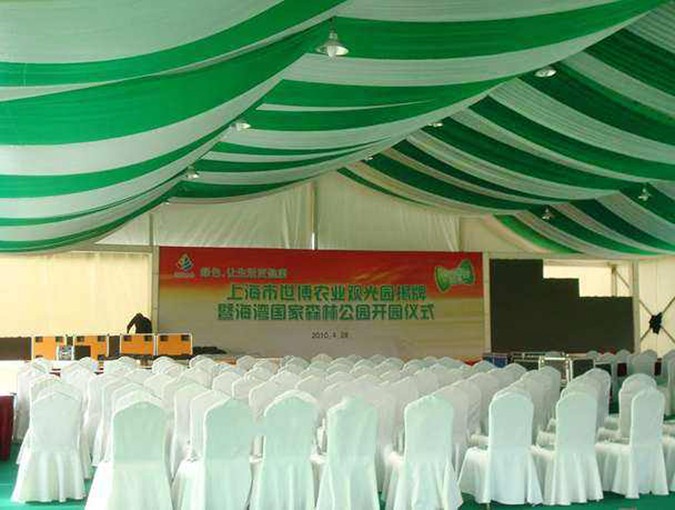

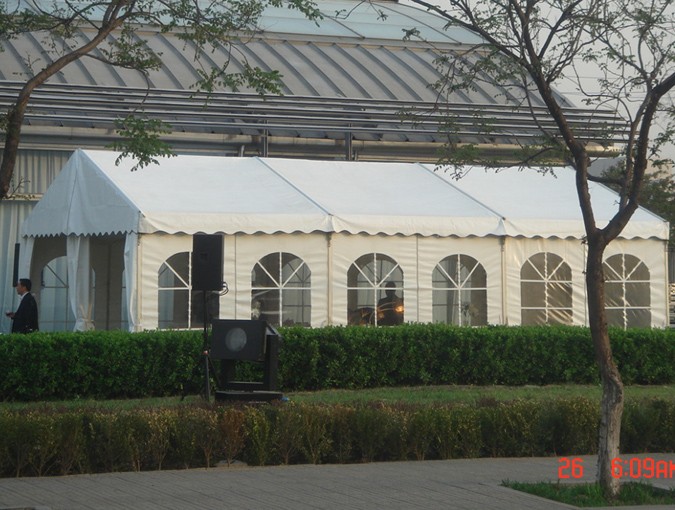

Product pictures
