Heavy duty event tent glass
event tent

Heavy duty event tent glass

Z&D event tent with highly extruded aluminum alloy, excellent welding and high quality PVC material, it is waterproof, sun-proof and windproof. Our event tent is available with a complete rang of accessories including PVC window sidewalls, transparent PVC covers, glass walls, glass doors, flooring system, linings and curtains, lighting and so on. Z&D tents are easy to set up, economical and used in various outdoor activities, such as beer festival, food festival, sports events, fashion week events, etc.
sales@zdtent.com
Inquire Now
Product Detail
Heavy duty event tent glass

Product Size

1) Width: from 3 meters to 50 meters

2) Length: Unlimited

3) Eave height: standard from 2.5 meters, 3 meters, 4 meters, 5 meters to 6 meters upon span width(or special height per requested)

4) Ridge height: It varies with the height of the eave

5) Bay distance: 5 meters each bay


Size specification

Item

Span

(Width m)

Bayspacing(m)

Eave height(m)

Ridge height

(m)

Main frameprofile(mm)

Z&D-6

6

3

2.5

3.5

48x84x3

Z&D-8

8

3

2.5

3.9

48x84x3

Z&D-10

10

3

2.5

4.3

48x84x3/48x100x3

Z&D-12

12

5

3

5.1

68x122x3

Z&D-15

15

5

3

5.4

108x150x3

Z&D-18

18

5

4

6.9

112x203x4

Z&D-20

20

5

4

7.2

112x203x4

Z&D-25

25

5

4

8.0

113x259x5

Z&D-30

30

5

4

8.8

120x300x5

Z&D-40

40

5

4

10.4

120x300x5

Z&D-50

50

5

5

13

128x350x5


Frame part

1) The main parts are made of aluminum alloy, and the spare part are made of steel.

2) All aluminum components are technically anodized and all steel parts are well hot-dip galvanized.


Cover Part

1) The whole fabric made of double coated PVC fabric.

2) The fabrics have waterproof, UV resistant, flame retardant to DIN4102, M2 and Grade B1, tear resistant, self-cleaning ability, etc.

3) In this case, the roof is 850g/sqm white PVC, the side wall and door is made of temperd glass.


Fixing way

Expansion screw in this case


Other optional accessories

1) Shape: High-peak, Polygonal, Arcum, Curve, Pagoda

2) Walls: PVC windows walls, PVC walls, Sandwich walls

3) Doors: Sliding door, PVC door

4) Flooring system

5) Lining and curtains

6) Other suppliers, such as door canopy, chairs, tables, lighting, etc

7) Fixing ways: Ground nails, Weight plate

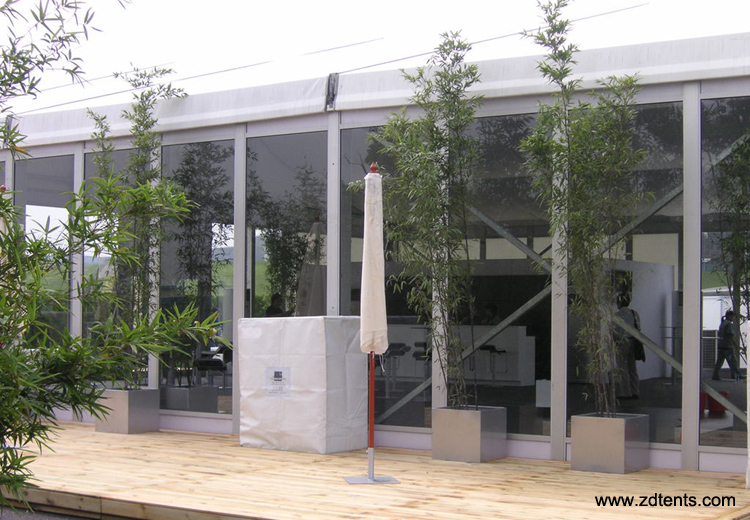

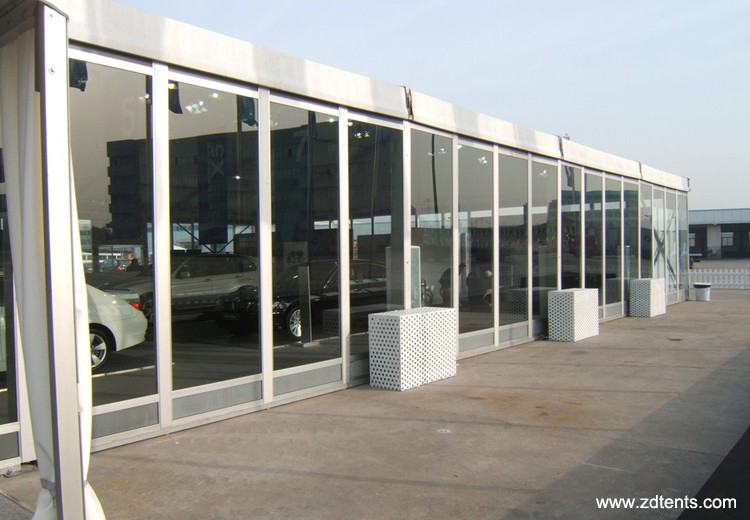

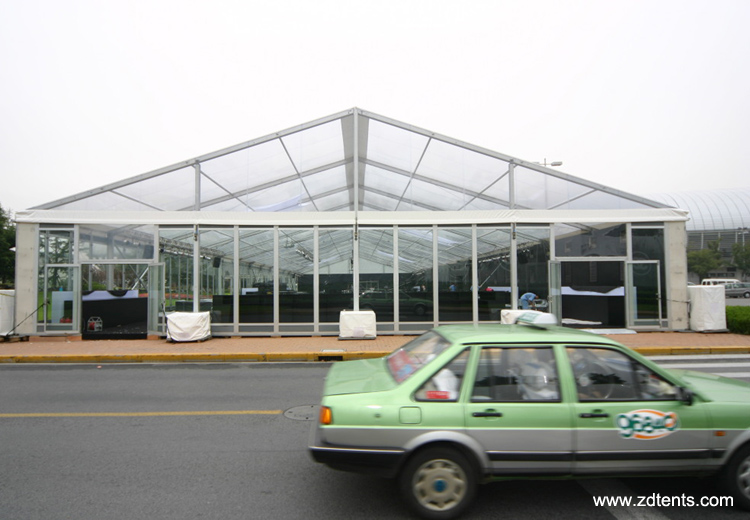

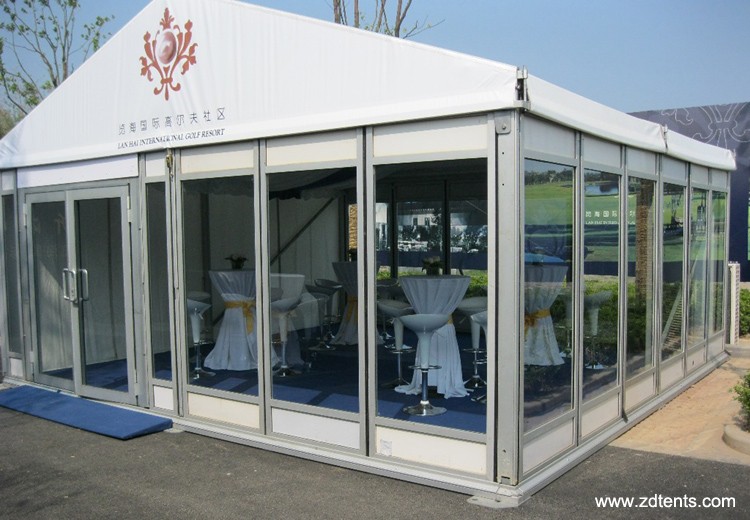

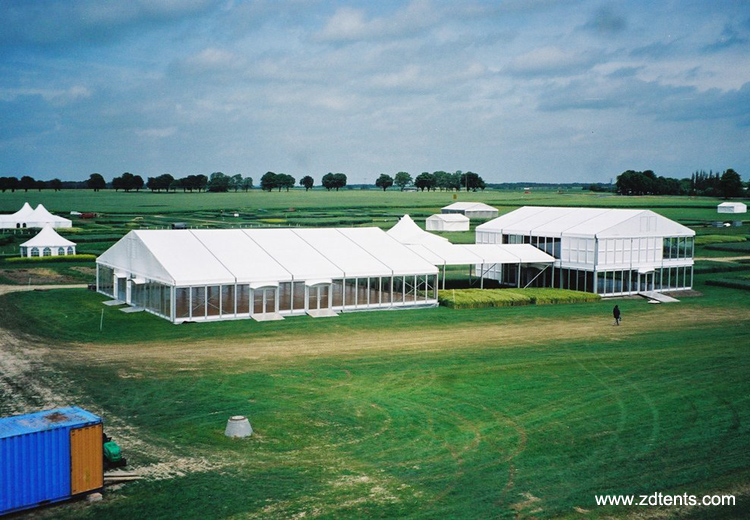

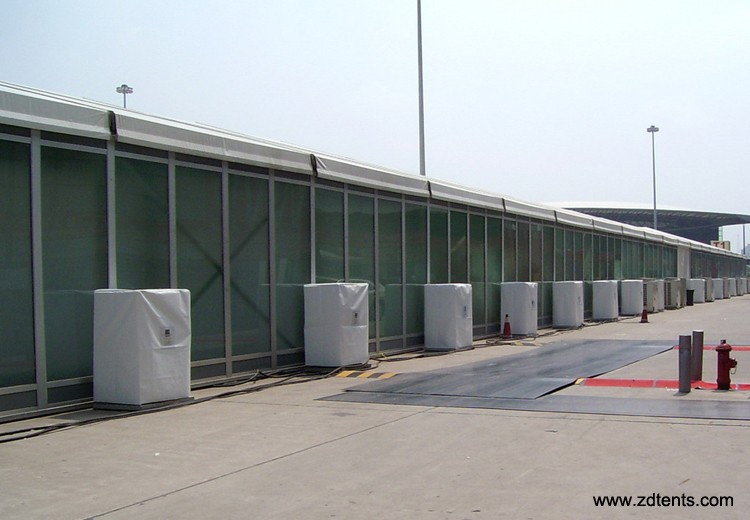

Product pictures









Keywords
heavy duty tent,heavy duty glass tent,heavy duty event tent,event tent glass
