Tent for Covid-19
Relief tent

Tent for Covid-19

Disaster relief tents are products only produced after the outbreak of COVID-19. It basically retains all the advantages of the factory warehouse tent. It is sturdy, wind and snow resistant, and insulation can be added inside to keep the interior warm. When the tent is large, ventilation equipment can be added inside to ensure air exchange. The tent can be set up with compartments like wards, the corridors and aisles are very spacious, and some medical equipment can be placed. The advantage of using a tent as a battlefield hospital is that it is quick and easy to build, and can accommodate hundreds of patients.
sales@zdtent.com
Inquire Now
Product Detail
Tent for Covid-19

Product Size

1) Width: from 3 meters to 50 meters

2) Length: Unlimited

3) Eave height: standard from 2.5 meters, 3 meters, 4 meters, 5 meters to 6 meters upon span width(or special height per requested)

4) Ridge height: It varies with the height of the eave

5) Bay distance: 5 meters each bay


Size specification

Item

Span

(Width m)

Bayspacing(m)

Eave height(m)

Ridge height

(m)

Main frameprofile(mm)

Z&D-6

6

3

2.5

3.5

48x84x3

Z&D-8

8

3

2.5

3.9

48x84x3

Z&D-10

10

3

2.5

4.3

48x84x3/48x100x3

Z&D-12

12

5

3

5.1

68x122x3

Z&D-15

15

5

3

5.4

108x150x3

Z&D-18

18

5

4

6.9

112x203x4

Z&D-20

20

5

4

7.2

112x203x4

Z&D-25

25

5

4

8.0

113x259x5

Z&D-30

30

5

4

8.8

120x300x5

Z&D-40

40

5

4

10.4

120x300x5

Z&D-50

50

5

5

13

128x350x5


Frame part

1) The main parts are made of aluminum alloy, and the spare part are made of steel.

2) All aluminum components are technically anodized and all steel parts are well hot-dip galvanized.


Cover Part

1) The whole fabric made of double coated PVC fabric.

2) The fabrics have waterproof, UV resistant, flame retardant to DIN4102, M2 and Grade B1, tear resistant, self-cleaning ability, etc.

3) In this case, the roof is 850g/sqm white PVC, the side wall and door is made of PVC walls.


Fixing way

Expansion screw in this case


Other optional accessories

1) Shape: High-peak, Polygonal, Arcum, Curve, Pagoda

2) Walls: Glass walls, Sandwich walls

3) Doors: Glass door, sliding door, transparent PVC door

4) Other suppliers, such as chairs, beds, tables, lighting, etc

5) Fixing ways: Ground nails, Weight plate

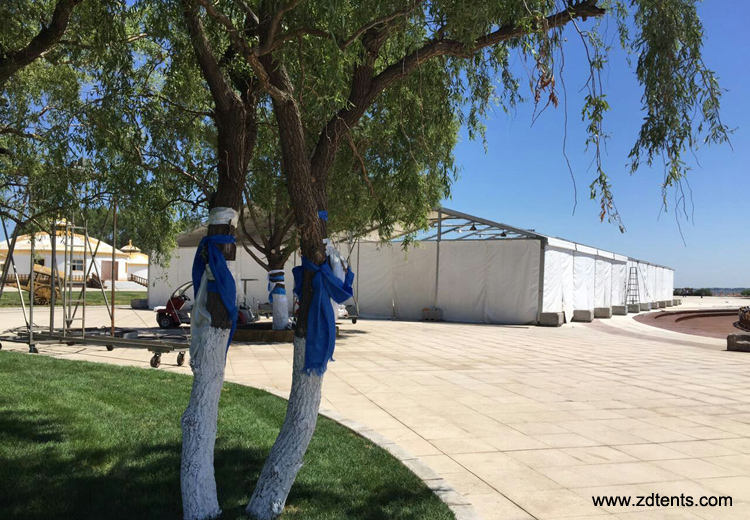

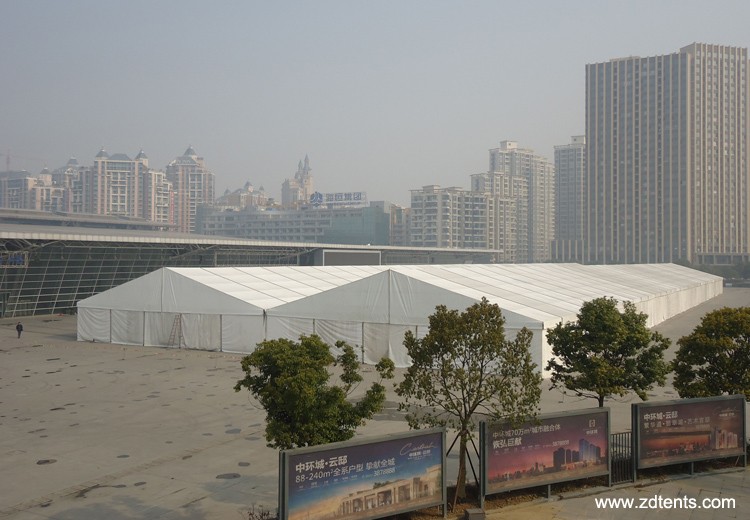

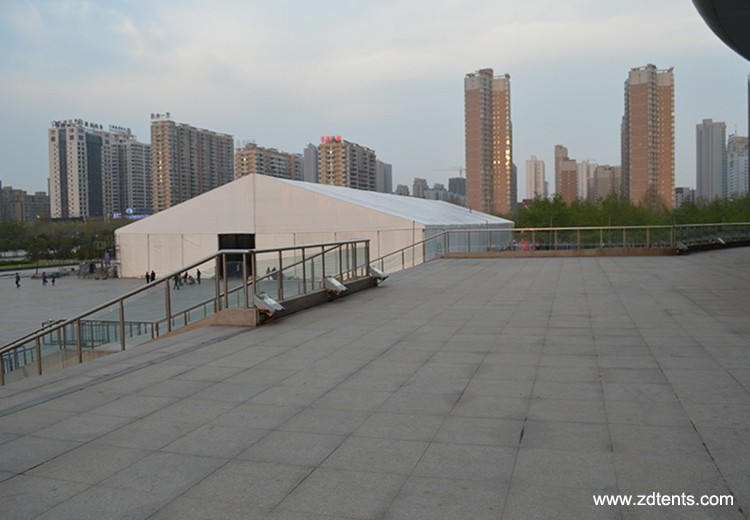

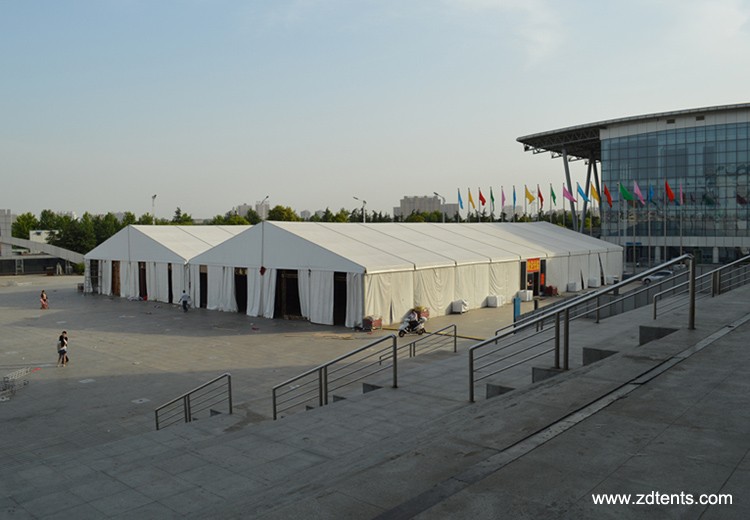

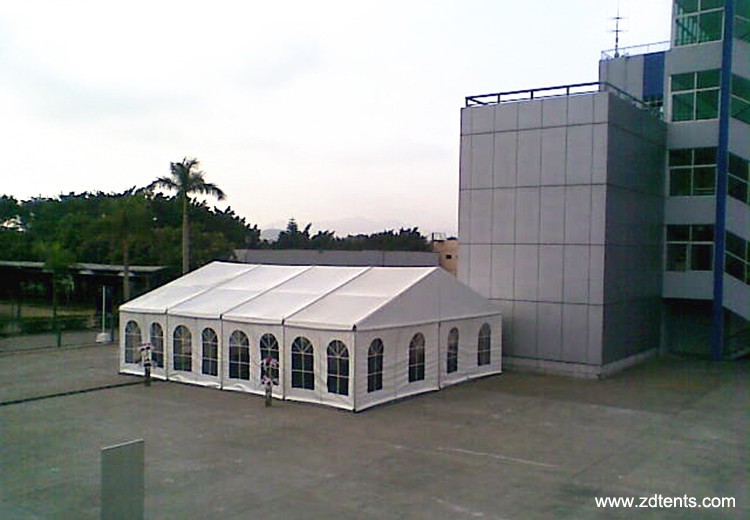

Product pictures

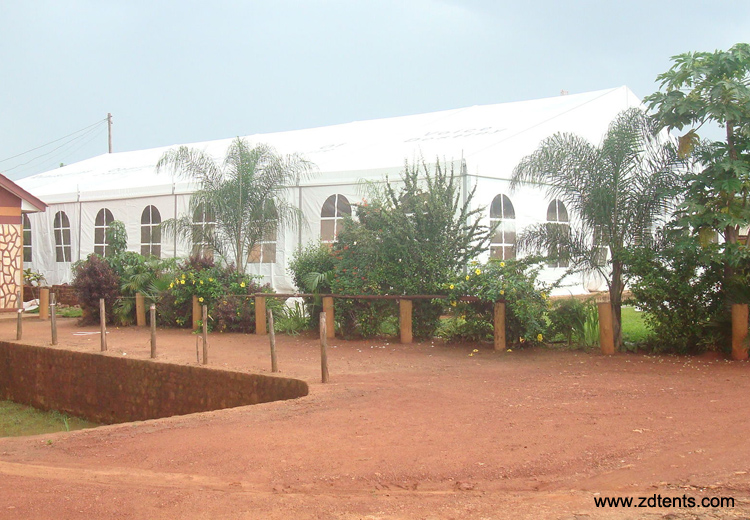

Tent office_看图王.jpg

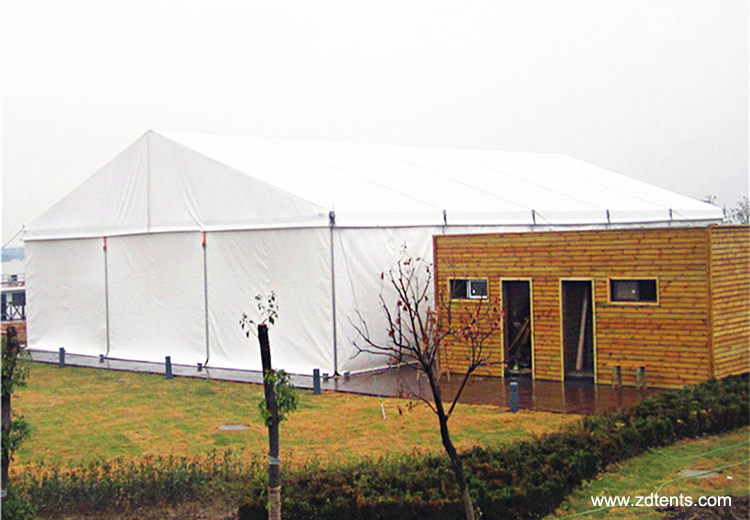

photobank (9).jpg




Keywords
aluminum disaster tent,tent for covid-19,tent for covid19,covid-19 tent,covid 19 tent
