Trade show exhibition tent pagoda tent
pagoda tent

Trade show exhibition tent pagoda tent

Z&D outdoor exhibition tent is made of aluminum frame and waterproof PVC fabric. The tent styles are available for selection. A shaped tent, transparent tent, pagoda top tent and polygonal tent are more commonly used. We usually use tents for outdoor exhibitions, trade shows, car shows or festival celebrations. In addition to durable PVC fabric walls, we also offer tempered glass walls, solid sandwich walls or ABS walls for your choice. This event tent is weather resistant and can be used in four seasons. Whenever you need a temporary or long-term event space, it can be quickly built to provide the space for you.
sales@zdtent.com
Inquire Now
Product Detail
Trade show exhibition tent pagoda tent

Product Size

1) Width: from 3 meters to 10 meters

2) Length: from 3 meters to 10 meters

3) Eave height: standard from 2.3 meters, 2.5 meters, 2.8 meters, 3 meters upon span width(or special height per requested)

4) Ridge height: It varies with the height of the eave

5) Bay distance: The wall is the bay


Size specification

Item

Span

(Width m)

Bayspacing(m)

Eave height(m)

Ridge height

(m)

Main frameprofile(mm)

Z&D-3x3

3

3

2.5

4.1

65x65x2.5/48x84x3

Z&D-4x4

4

4

2.5

4.7

65x65x2.5/48x84x3

Z&D-5x5

5

5

2.5

5.1

65x65x2.5/48x84x3

Z&D-6x6

6

6

2.5

5.6

48x100x3/68x122x3

Z&D-8x8

8

8

2.5

6.1

68x122x3

Z&D-10x10

10

10

2.5

6.6

68x122x3


Frame part

1) The main parts are made of aluminum alloy, and the spare part are made of steel.

2) All aluminum components are technically anodized and all steel parts are well hot-dip galvanized.


Cover Part

1) The whole fabric made of double coated PVC fabric.

2) The fabrics have waterproof, UV resistant, flame retardant to DIN4102, M2 and Grade B1, tear resistant, self-cleaning ability, etc.

3) In this case, the roof is 850g/sqm white PVC, the side wall and door is made of PVC windows walls.


Fixing way

Expansion screw in this case


Other optional accessories

1) Shape: High-peak, Polygonal, Arcum, Curve, A-shaped

2) Walls: PVC white walls, Glass walls

3) Doors: Glass door, sliding door

4) Flooring system

5) Lining and curtains

6) Other suppliers, such as door canopy, chairs, tables, lighting, etc

7) Fixing ways: Ground nails, Weight plate

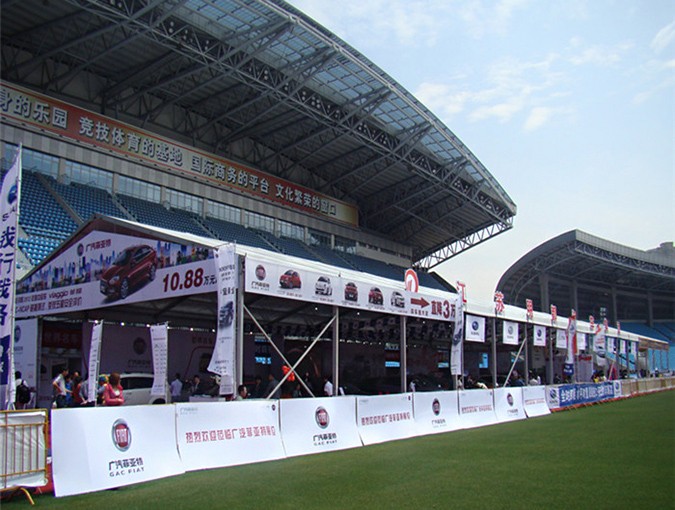

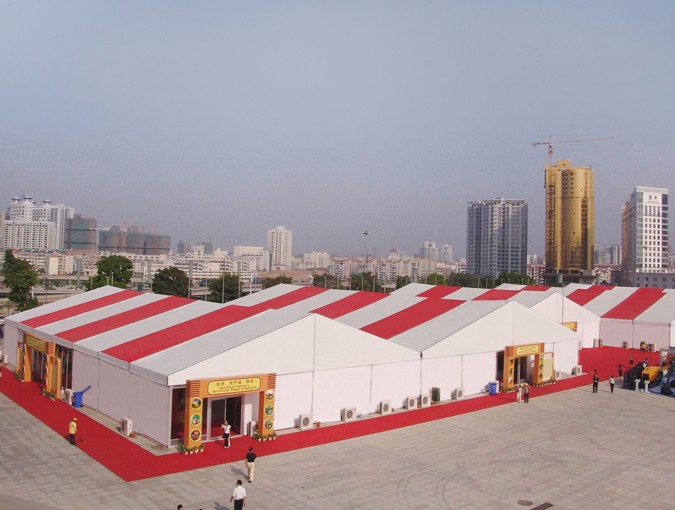

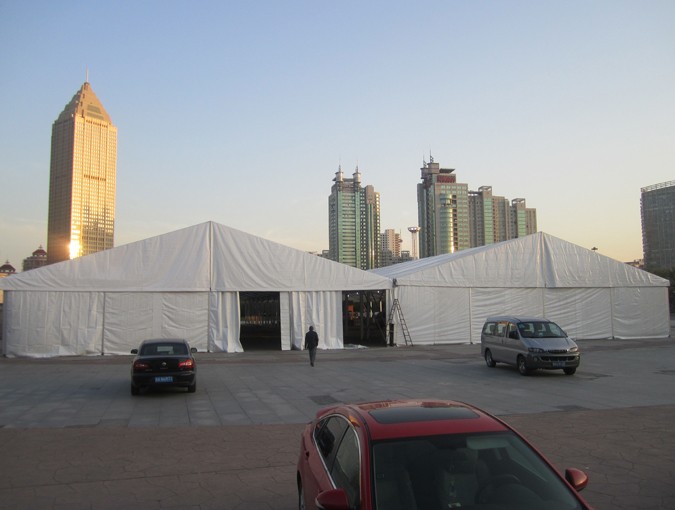

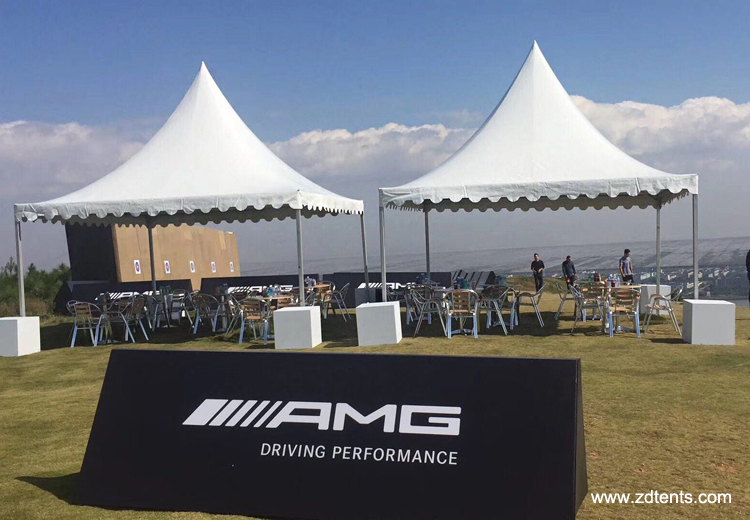

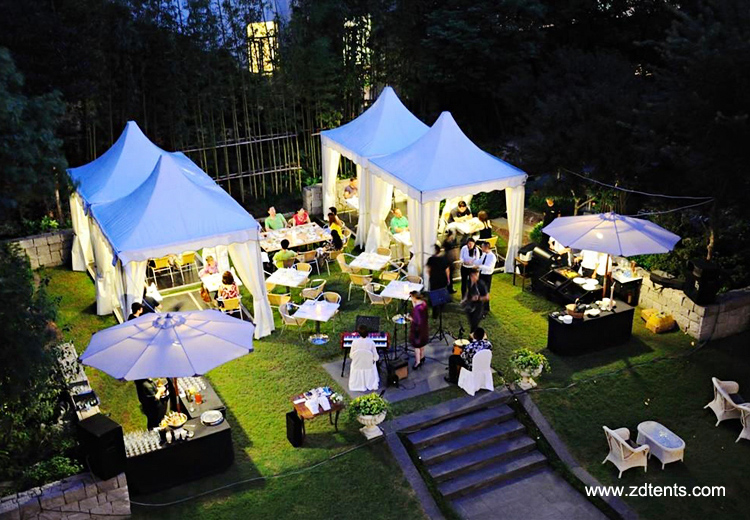

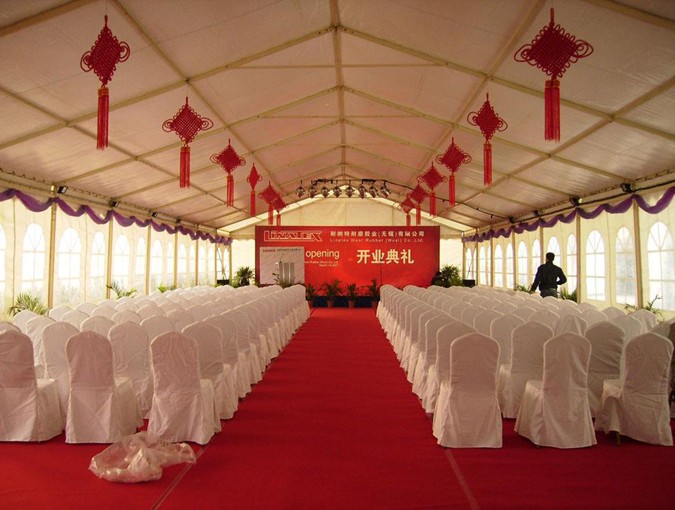

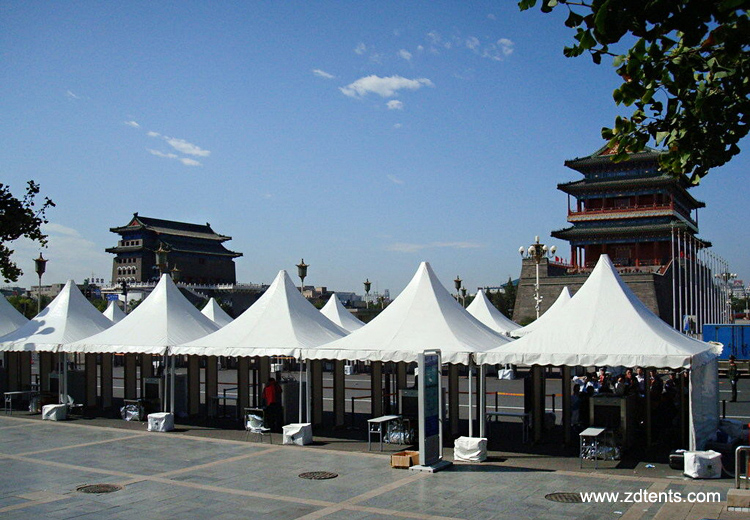

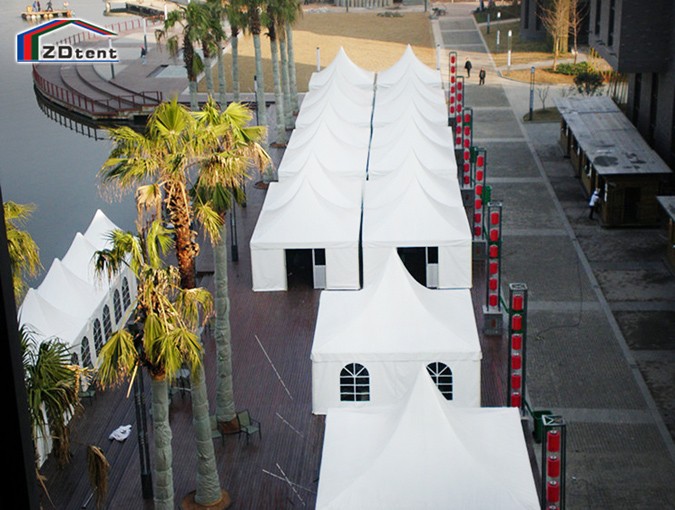

Product pictures
