Large church tent for African
church tent

Large church tent for African

The width of Z&D church tent from 3 to 50 meters, and can be extended indefinitely. Our popular church tents are 20x50 meters in size and can accommodate 1000 people. There can be podiums in the church tents, and there are church-style windows and curtains for customers to choose. The structure is sturdy and durable, the appearance of the tent is beautiful, the dis-assembly and assembly are very convenient, and we can also provide customized services.
Product Detail
Large church tent for African

Product Size

1) Width: from 3 meters to 50 meters

2) Length: Unlimited

3) Eave height: standard from 2.5 meters, 3 meters, 4 meters, 5 meters to 6 meters upon span width(or special height per requested)

4) Ridge height: It varies with the height of the eave

5) Bay distance: 5 meters each bay


Size specification

Item

Span

(Width m)

Bayspacing(m)

Eave height(m)

Ridge height

(m)

Main frameprofile(mm)

Z&D-6

6

3

2.5

3.5

48x84x3

Z&D-8

8

3

2.5

3.9

48x84x3

Z&D-10

10

3

2.5

4.3

48x84x3/48x100x3

Z&D-12

12

5

3

5.1

68x122x3

Z&D-15

15

5

3

5.4

108x150x3

Z&D-18

18

5

4

6.9

112x203x4

Z&D-20

20

5

4

7.2

112x203x4

Z&D-25

25

5

4

8.0

113x259x5

Z&D-30

30

5

4

8.8

120x300x5

Z&D-40

40

5

4

10.4

120x300x5

Z&D-50

50

5

5

13

128x350x5


Frame part

1) The main parts are made of aluminum alloy, and the spare part are made of steel.

2) All aluminum components are technically anodized and all steel parts are well hot-dip galvanized.


Cover Part

1) The whole fabric made of double coated PVC fabric.

2) The fabrics have waterproof, UV resistant, flame retardant to DIN4102, M2 and Grade B1, tear resistant, self-cleaning ability, etc.

3) In this case, the roof is 850g/sqm white PVC, the side wall and door is made of PVC windows walls.


Fixing way

Expansion screw in this case


Other optional accessories

1) Shape: High-peak, Polygonal, Arcum, Curve, Pagoda

2) Walls: PVC white walls, Glass walls, Sandwich walls

3) Doors: Glass door, sliding door

4) Flooring system

5) Lining and curtains

6) Other suppliers, such as door canopy, chairs, tables, lighting, etc

7) Fixing ways: Ground nails, Weight plate


Product pictures

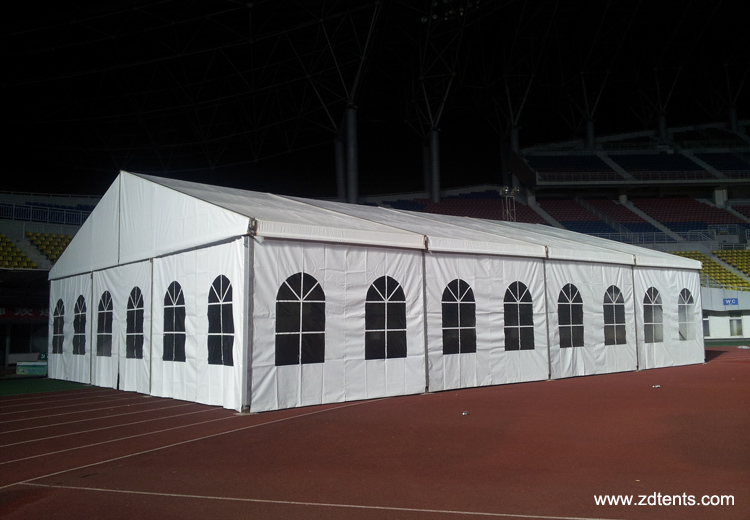

12m tent with windows.jpg
